Kent Armstrong TVC90B-C Icon Series Casino P-90 Pickup – Bridge

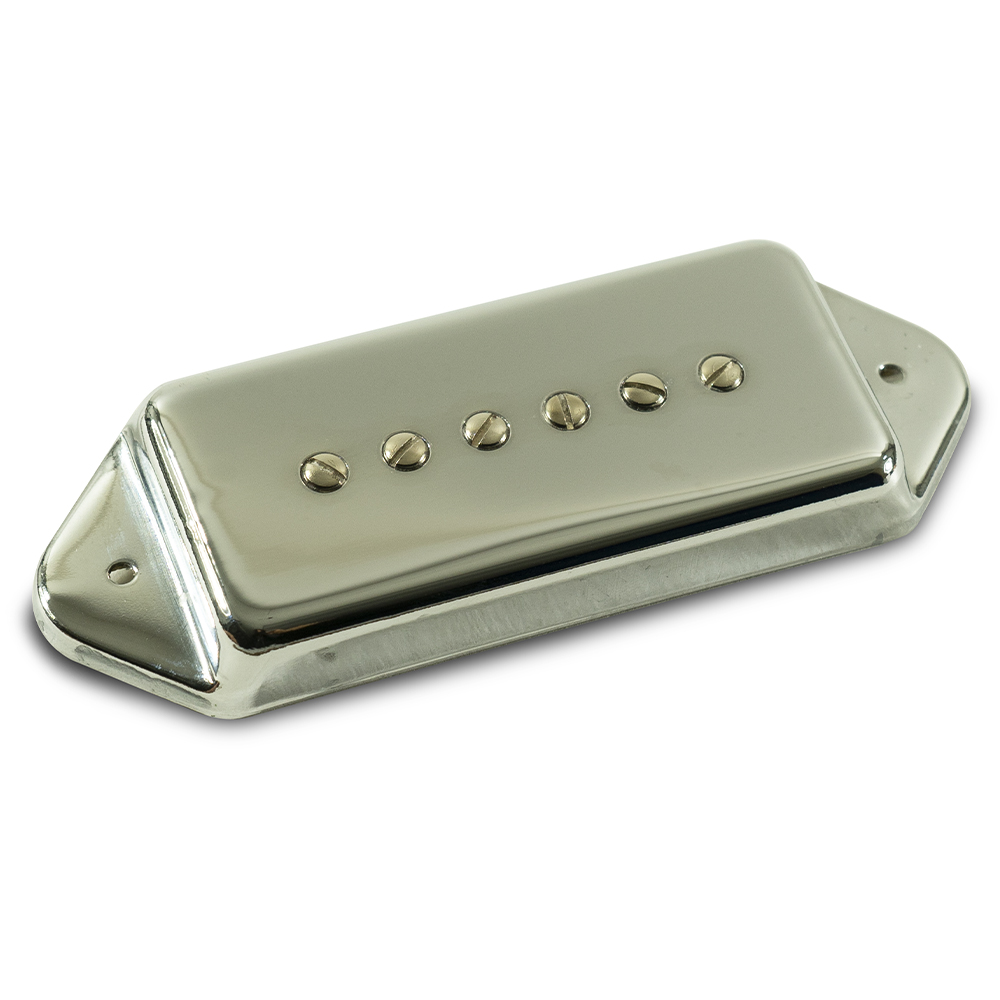

Kent Armstrong Icon Series Casino P-90 Pickup

This new addition to the Icon Series lineup is a recreation of the Casino pickup using Alnico 2 magnets and plain enamel wire. The pickup has all the aged warmth you are looking for with the classic Casino chime and tone. Very comparable to an early 1960s era pickup with neck position 7.6K and bridge position 8.2k Ohms resistance. Wound with an RW/RP neck position to form a calibrated vintage set.

Specifications:

• 8.2K.
• Bridge Position.
• Cover size: length = 4 23/32 inches to ends of tabs.
• Width = 1 5/8 inches.
• Center to center mounting hole spacing = 3 7/8 inches.
• Cover height – 25/64 inches on high side tapering to 5/16 inch on the low side.
• E to E pole piece spacing = 48mm.
