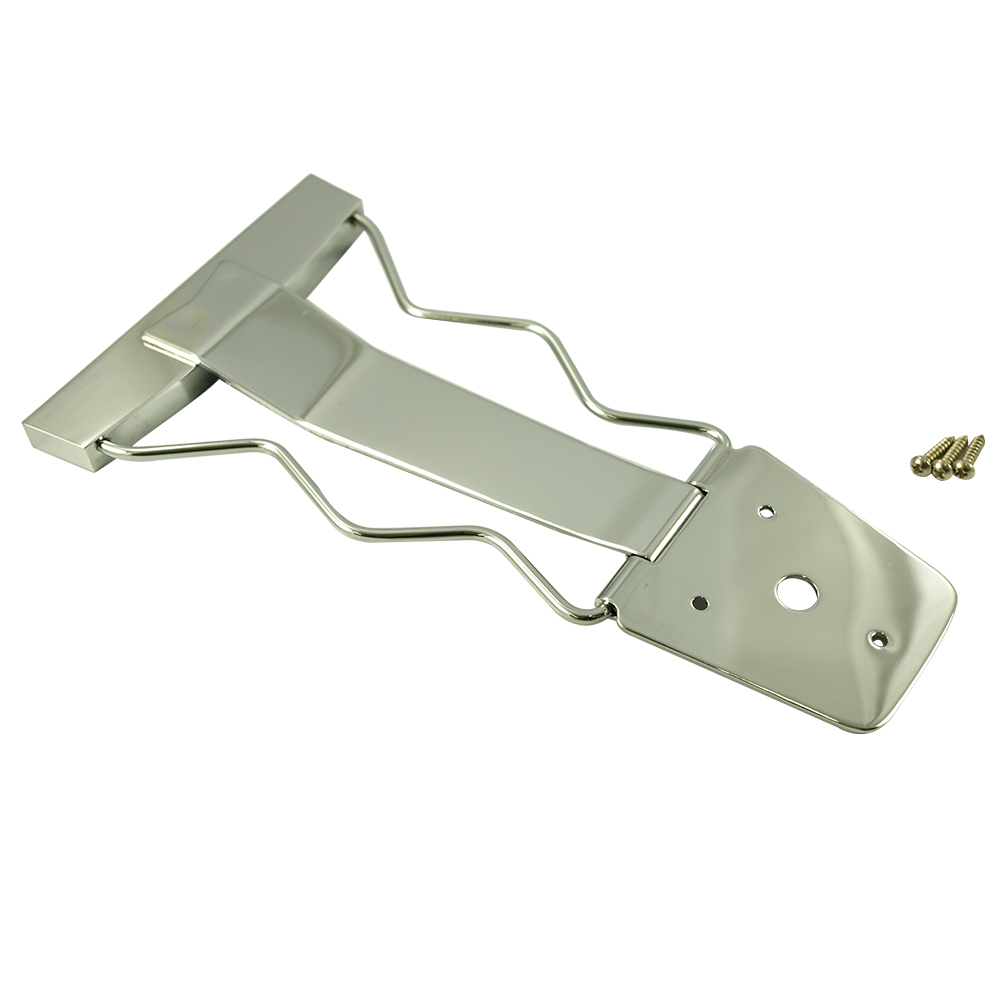

WD Replacement Tailpiece For Vintage Gibson ES-175
This tailpiece is a correct replacement for vintage Gibson ES-175s.
Specifications:
- String Spacing at tension bar = 2 1/8 in (54mm).
- Tension bar overall width = 3 61/64 in. (100mm).
- Tailpiece length not including hinge = 5 13/32 in. (137.5mm).
- Length of Hinge to the center of hinge loop = 2 11/32 in. (59.5mm).
- Hinge width = 2 9/64 in. (54.4mm).
- Strap buttonhole location = 1 13/64 in (30.7mm) below hinge loop center.
- Hinge mounting hole locations = 9/16 in. (14.3mm) above strap button hole center.
- Lower mounting hole location = 11/16 below the center of the strap buttonhole.
- Upper hinge mounting holes = 1 1/16 in. (27.1mm) apart centered above the strap buttonhole.
